Thermostatic mass flow meter with constant temperature difference

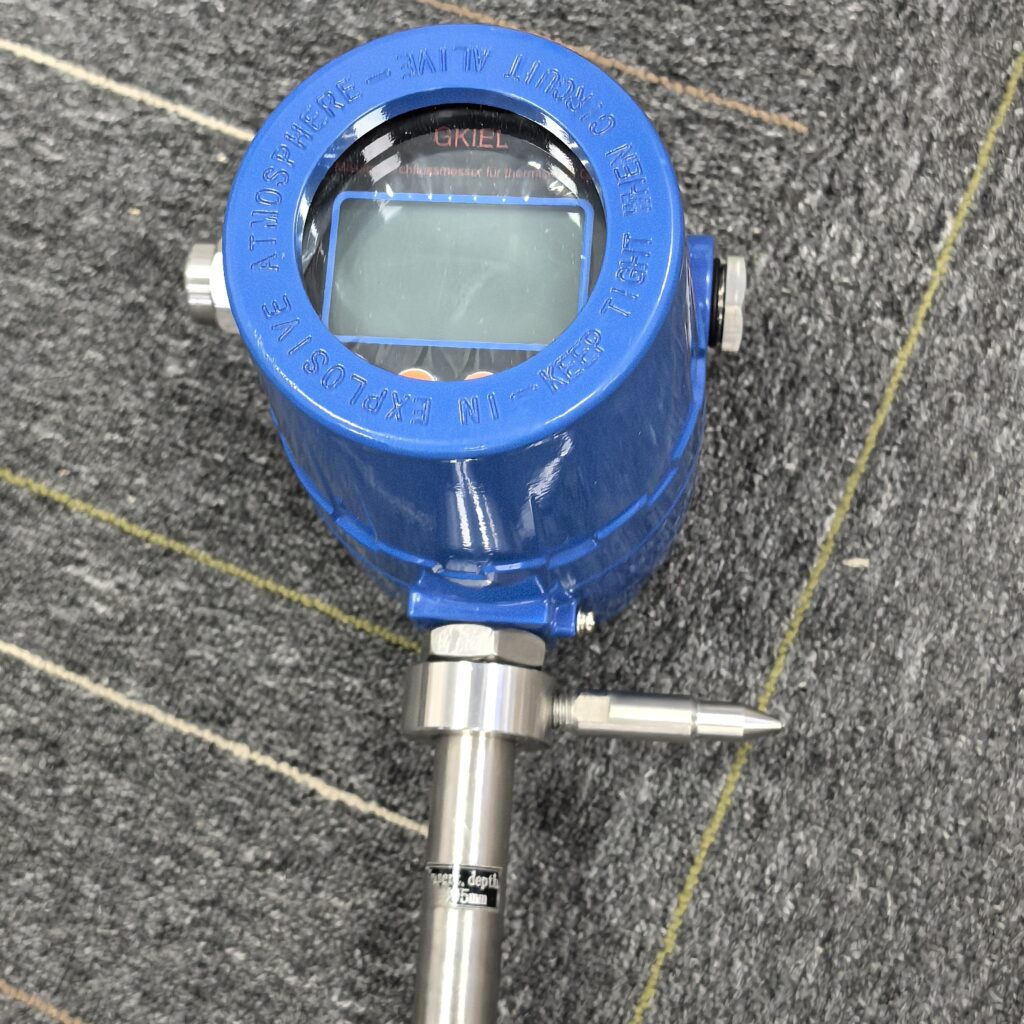

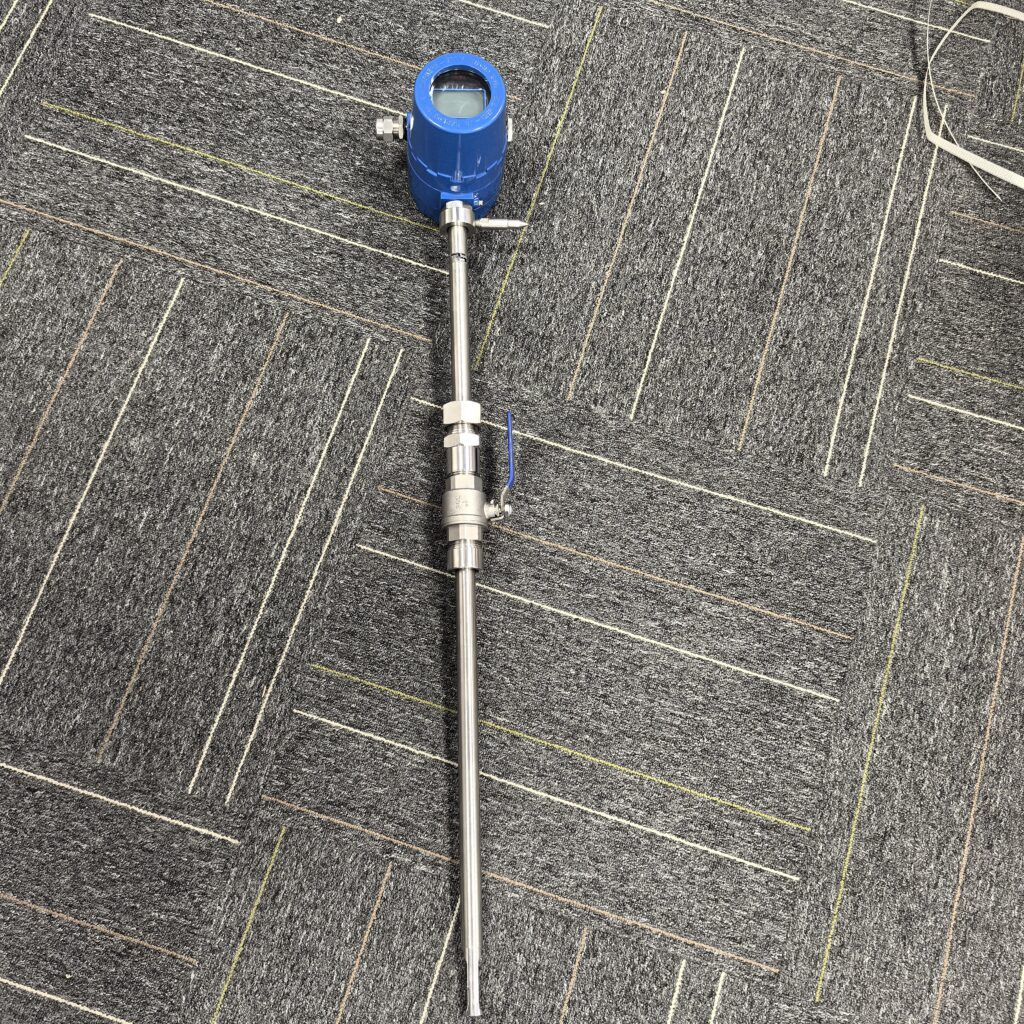

Thermostatic mass flow meter with constant temperature difference

1. Introduction

The constant temperature difference thermal mass flow meter is the most mainstream measuring type of thermal gas mass flow meters and mass flow controllers (MFC) in the precision gas measurement industry. Different from volumetric flow meters that only detect gas volume flow, this device directly measures gas mass flow based on heat transfer theory, requiring no additional temperature and pressure compensation modules. Among two core working modes of thermal flow meters, constant temperature difference mode occupies more than 90% of industrial MFM and MFC markets due to its fast response speed, high linearity and stable measuring performance. This paper systematically elaborates its working principle, internal structure, core advantages, limitations, mode comparison and typical industrial applications.

2. Basic Working Principle

The core measurement theory follows the heat dissipation law: flowing gas takes away heat from the heating sensor, and the heat taken away is linearly proportional to the gas mass flow rate, independent of gas pressure and ambient temperature fluctuation.
The meter is equipped with two matched platinum resistance sensors installed on the capillary bypass channel: an upstream heating sensor and a downstream temperature measuring sensor. The whole system keeps a fixed constant temperature difference (ΔT) between two sensors all the time.
  1. No-flow state: When gas is static, heat will not be taken away by airflow. The heating circuit maintains stable heating power, and
  2. Low flow rate state: A small amount of flowing gas carries partial heat, leading to a narrowed temperature gap. The control circuit automatically increases heating power to restore the preset standard temperature difference.
  3. High flow rate state: Massive gas takes away more heat. The system further boosts heating power to keep ΔT constant.
Finally, the real-time heating power consumed by the system is converted into standard gas mass flow signal. The functional relationship can be summarized as: Heating Power ∝ Gas Mass Flow Rate.

3. Internal Structural Composition

The constant temperature difference mass flow meter mainly consists of four core parts, which are highly matched for closed-loop temperature control and flow signal output:
  1. Bypass capillary flow channel: Most gas flows through the main pipeline, and only a small proportion of gas enters the fine capillary for sensing detection, ensuring tiny flow resistance and low pipeline pressure loss.
  2. Dual platinum resistance sensors: One for constant heating, the other for real-time temperature monitoring, forming a complete temperature detection bridge circuit.
  3. Closed-loop PID control circuit: The core module to adjust heating power dynamically and lock the fixed temperature difference steadily.
  4. Signal output module: Support standard industrial signals including 4-20mA analog signal, 0-5V voltage signal and RS485 Modbus digital communication signal.

4. Advantages and Disadvantages

4.1 Core Advantages

  • Ultra-fast response speed: Real-time dynamic power adjustment adapts to sudden flow changes, with response time less than 100ms, far better than constant power mode.
  • Excellent linearity and repeatability: Stable temperature difference control ensures linear flow output, which meets high-precision process gas control requirements.
  • No need for temperature and pressure compensation: Direct mass flow measurement avoids measurement errors caused by pipeline working condition fluctuations.
  • Low pressure loss: Bypass split-flow design will not interfere with the stability of the whole gas supply pipeline.

4.2 Limitations

  • The slender capillary channel is easy to be blocked by oil mist, dust and condensed liquid, resulting in zero drift and measurement deviation.
  • Calibration is gas-specific. Once the measured gas type changes, recalibration is required because different gases have different specific heat capacities.
  • Not suitable for ultra-large flow measurement scenarios with high cost compared with differential pressure flow meters.

5. Comparison with Constant Power Mode

Item
Constant Temperature Difference Mode
Constant Power Mode
Control Logic
Fixed temperature difference, variable heating power
Fixed heating power, variable temperature difference
Response Speed
Fast, suitable for dynamic flow fluctuation
Slow, obvious hysteresis
Measurement Linearity
High
General
Main Application
Capillary MFM/MFC for semiconductor, laboratory
Insertion-type large-diameter industrial gas flow meter

6. Typical Industrial Applications

Relying on outstanding dynamic control performance, constant temperature difference thermostatic mass flow meters are widely used in high-precision gas process industries:
  1. Semiconductor and photovoltaic industry: Precise flow control of argon, nitrogen, oxygen and special process gas in etching, deposition and diffusion processes.
  2. Vacuum coating industry: Stable gas supply control for PVD, CVD and magnetron sputtering equipment.
  3. Laboratory analytical instruments: Gas matching and flow calibration for gas chromatography and environmental monitoring analyzers.
  4. Medical equipment industry: Accurate proportioning and flow monitoring of medical oxygen and mixed protective gas.

7. Conclusion

As the dominant working mode of thermal gas mass flow meters, the thermostatic mass flow meter with constant temperature difference achieves high-precision and fast-response mass flow measurement through closed-loop temperature difference locking technology. It perfectly matches the demand of precise and stable gas delivery in high-end manufacturing industries. Although it has limitations in anti-pollution performance and large-flow measurement, it is still the preferred solution for medium and micro precise gas flow measurement and control, and cannot be replaced by constant power mode in mainstream MFC products.
